Area Lighting Simplified, Versatility Delivered

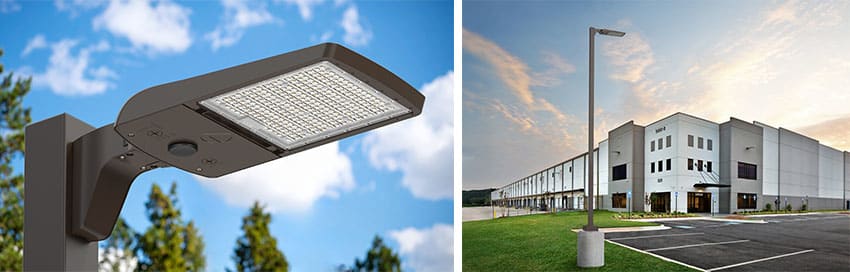

The EAX LED Area Luminaire family provides the best combination of switchable technology including adjustable lumens, switchable color temperature and four-optic SwitchOptics™ providing Type II, III, IV and V distribution patterns; all from a single luminaire. This vast feature-set allows maximum flexibility while managing the lowest possible SKU counts on the shelf or in-field on area lighting projects.
Dial in the Right Performance
Light exactly the way you need it - tailored to your application. With 5-step adjustable lumens and three switchable color temperatures (3000K, 4000K, 5000K), you can fine tune brightness and appearance right on the spot to match the job. No guesswork, no returns, no go-backs. One luminaire does it all, saving time and money!

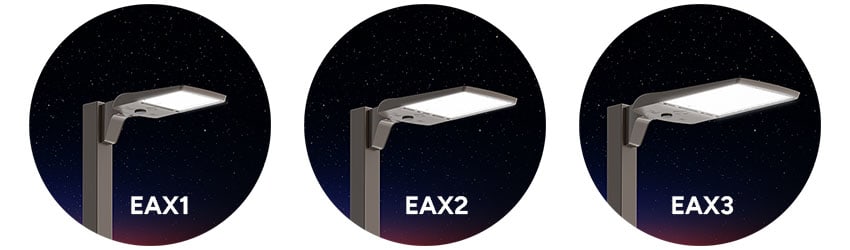

EAX1: 5,000LM / 7,500LM / 10,000LM / 12,500 LM / 16,000LM
EAX2: 18,000LM / 21,000LM / 24,000LM / 27,000 LM / 30,000LM
EAX3: 33,000LM / 36,000LM / 39,000LM / 42,000 LM / 45,000LM
All the Distributions You Need, Built Right in
SwitchOptics™ delivers four distribution patterns from a single EAX luminaire – no lens changes, no custom orders. Just flip the switch to shift seamlessly from wide-area parking coverage to pathway illumination or a perimeter site solution.
Mounting Solutions for Every Project
EAX offers six different mountings with a variety of labor saving features including "no-drill" mounting arms that fit the majority of existing pole drillings helping save labor, time and money.
Lighting Controls
Leverage the full capabilities of a networked lighting control system, with networked embedded controls by nLight®. The EAX is available with wireless outdoor networked embedded controls by nLight, and is a DLC® NLC qualified product for LLLC, addressing code requirements and gaining energy savings of up to 63%*. Further reduce your total installation costs with the Visual™ Installer mobile app by streamlining your installation process. nLight® is your networked lighting controls platform for indoor and outdoor applications, providing wired or wireless options.
EAX also provides for traditional controls including a twist-lock photocell receptacle with shorting cap as the simplest means to offer a dusk-to-dawn solution.
- SwitchOptics™ Technology with Type II, III, IV, V
- Switchable Color Temperature 3000K / 4000K / 5000K
- Adjustable Lumens 5,000 – 45,000
- UVOLT (120V-347V) / XVOLT (277V - 480V)**
- Acuity Twist-to-Lock Sensor Receptacle / Twist-Lock Photocell Receptacle
- Six Mounting Options
- DLC Premium Listed
- IP66 Rated
- Enhanced Surge Protection**
- Networked Embedded Controls by nLight®**
** Configured with lead time.
