Is it always possible to address the exact requirements of LLLC?

Luminaire Level Lighting Controls have gained in adoption with findings suggesting “that more granular control (LLLC) may lead to higher savings”1

Luminaire Level Lighting Controls, essentially identifies three requirements:

  • Must be networked lighting controls
  • Leveraging occupancy and ambient light sensors
  • Embedded into the luminaire’s form factor during manufacturing process

What About Downlights?

Due to its form factor, occupancy and ambient light sensors cannot be embedded within downlights, at least not without impacting its design, installation, and aesthetics.

Solution

Provide for more granular control of downlights, by leveraging available embedded technology and your nLight ® networked lighting controls platform.

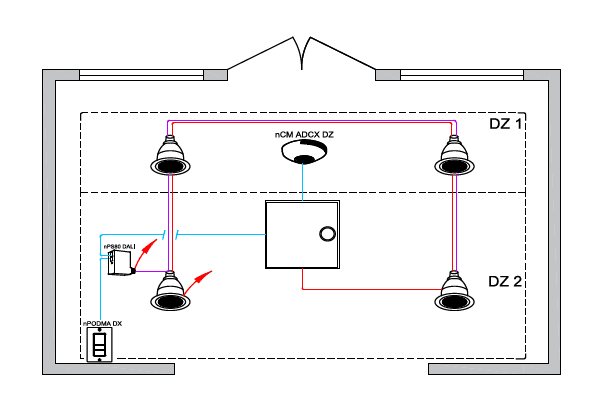

Option 1: Leverage the Embedded DALI® Driver

Specify DALI drivers in the luminaire and pair them with the
DALI-2™ certified nPS 80 DALI controller by nLight, to independently control luminaires with DALI drivers, while making it part of one same system, the nLight network. This allows you to meet the intent of LLLC by leveraging ceiling mount sensors or sensorsembedded within other luminaires in space.

Bill of Materials

    • 4 Downlights with wired networked embedded controls (control device) by nLight, interfacing with DALI
    • 1 Troffer with wired networked embedded controls (sensor) by nLight
    • 1 nPODMA DX On/Off, Raise/Lower wall switch
    • 1 nCM ADCX DZRJB Dual Zone Daylight Sensor
    • 1 nPS 80 DALI power pack controller
    • Configure 2 daylight zones

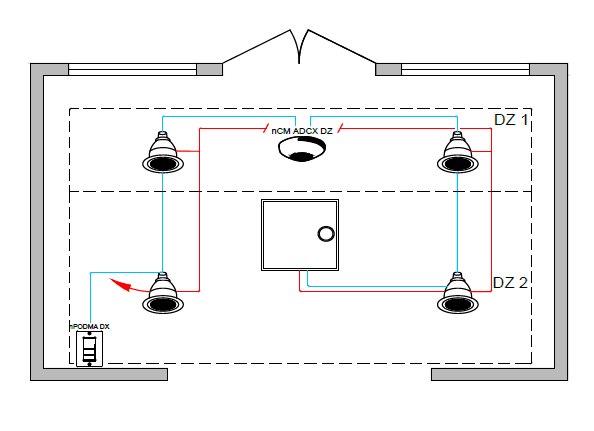

Option 2: Leverage Embedded Controls

Specify downlights available with wired or wireless networked
embedded controls devices, such as the nIO or rIO by nLight;
providing individual luminaire control and digital dimming
capabilities, and making it part of one same system, the nLight
network. Leverage ceiling mount sensors or sensors embe dded
within other luminaires in the space, and configure z ones to
achieve granular, luminaire level lighting control.


With either option, the downlights become individually
addressable and part of the nLight networked lighting contr ols
platform. This simplifies the software-based configuration of
lighting controls strategies – addressing daylight harvesting,
task tuning and occupancy sensing– while enabling fur ther
applications such as tunable white.

Bill of Materials

    • 4 Downlights with wired networked embedded controls (control device) by nLight, interfacing with DALI
    • 1 Troffer with wired networked embedded controls (sensor) by nLight
    • 1 nPODMA DX On/Off, Raise/Lower wall switch
    • 1 nCM ADCX DZRJB Dual Zone Daylight Sensor
    • Configure 2 daylight zones
    1 Energy Savings from Networked Lighting Control (NLC) Systems with and without LLLC – September 24, 2020 -
    https://designlights.org/resources/reports/report-energy-savings-from-networked-lighting-control-nlc-systems-with-and-without-lllc/
    DALI, the DALI Logo, DALI-2, the DALI-2 Logo, DiiA, the DiiA Logo, D4i, the D4i Logo, DALI+ and the DALI+ Logo are trademarks of the Digital Illumination Interface Alliance.
